Deuchainn bleith pùdar flùraiseach

Cùl-fhiosrachadh: Ground by Tencan Planetary ball mill, matched with alumina jars and zirconia balls.
Ùine bleith: 2 Hours. Granularity of output powder meets customer’s request.

Modail inneal gnìomhaichte: Vertical Planetary Ball Mill XQM-0.4

1. Tuairisgeul
1) Applied Field: Lighting Industry
2) Materials: Fluorescent Powder
3) Feed Size:500μm
4) Meud de bhiadhadh: 1000g
5) Material Property : Crispy
6) Iarrtas Luchd-cleachdaidh: Fo 50μm.
7) Mion-sgrùdadh às deidh sin: Deuchainn Meud Particle

⇒

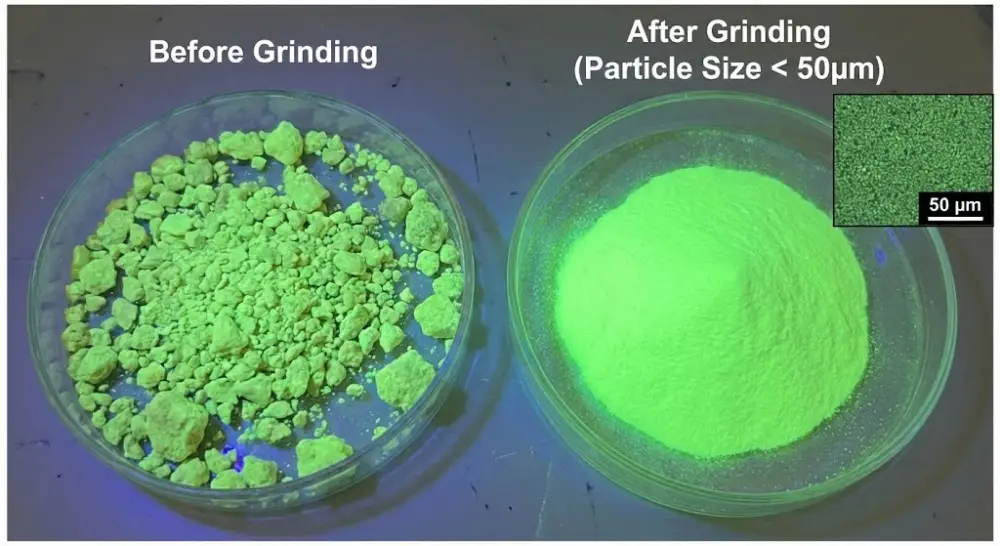

                            Before Grinding                                                                After Grinding

2. Fuasgladh:
1) Taghadh Uidheam: Modail Muileann Ball Planetary Inghearach XQM-4.
2) Accessories: Alumina Pots and Zirconia Balls.
3) Suidheachadh paramadair ruith: astar cuairteachaidh: 500rpm, Obrachadh dearbhach is àicheil às deidh ruith 30-mionaid.
4) Ùine bleith: 2 uair
5) Toradh bleith: 99% ＜50μm
6) Conclusion: Planetary Ball Mill Model XQM-6 can be used to grind fluorescent powder.

3. Raon Iarrtais: Fluorescent powder ground by XQM-4 can be applied into lighting products.
